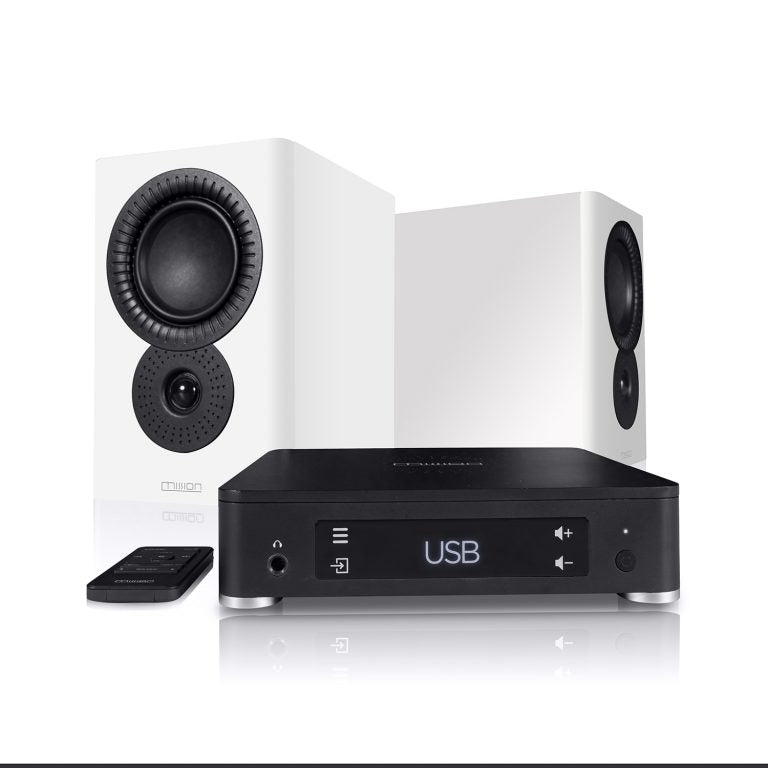

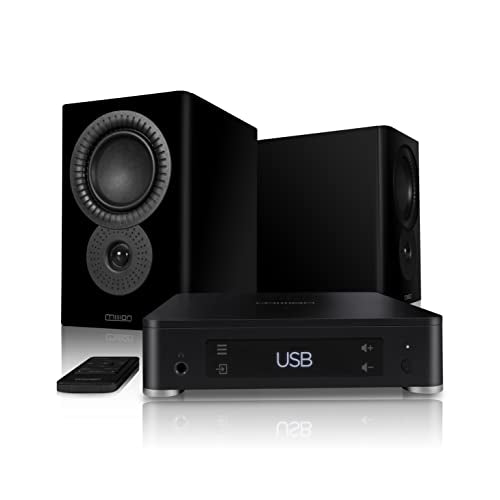

LX Connect Wireless Speaker System
LX Connect Wireless Speaker System

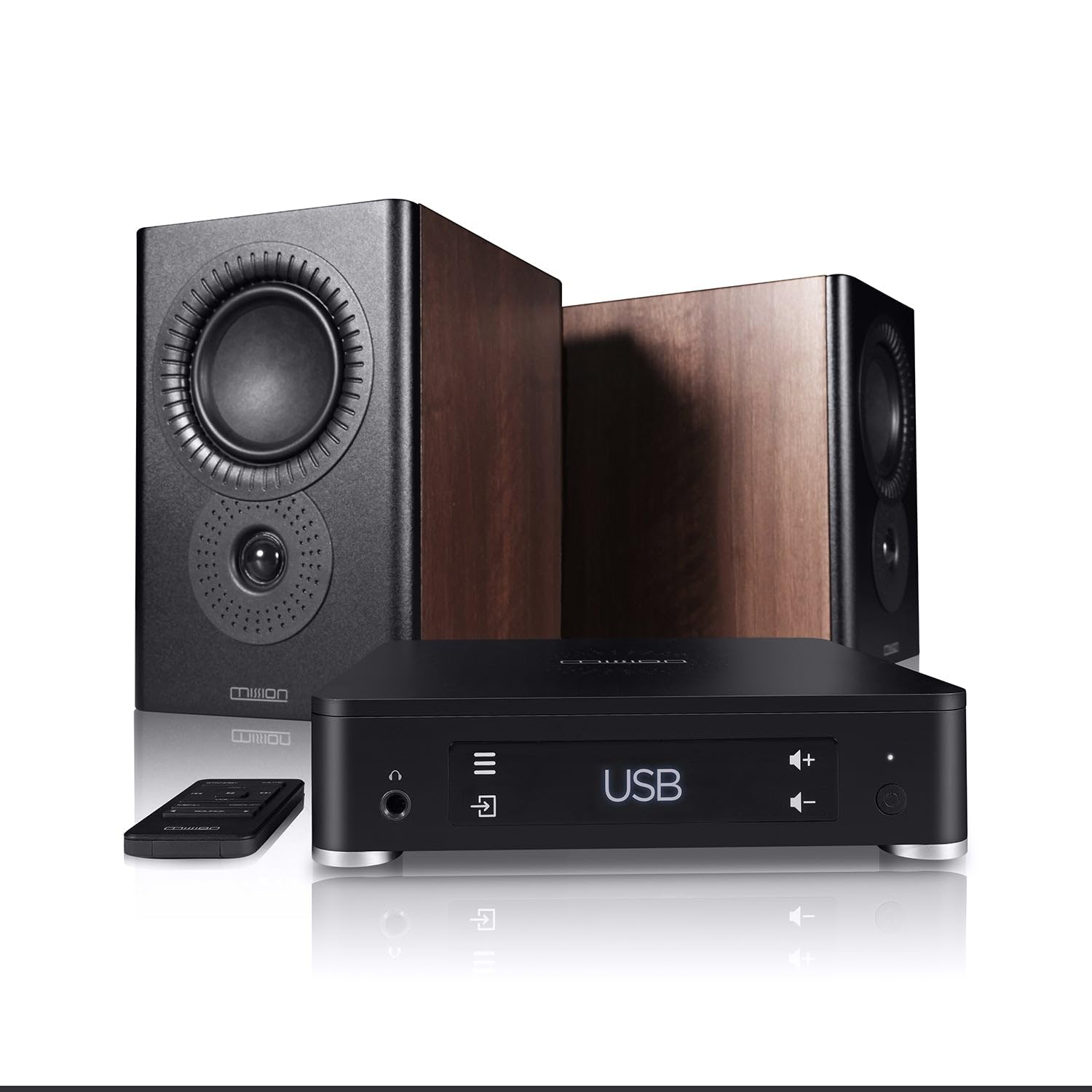

The Mission LX CONNECT wireless speaker system is Missions first ‘True Wireless’ speaker system. Utilising innovative wireless technologies and combining it with the award-winning LX MKII Series speakers, the Mission LX CONNECT offers a new level of convenience and performance that changes the game for all wireless speaker systems.

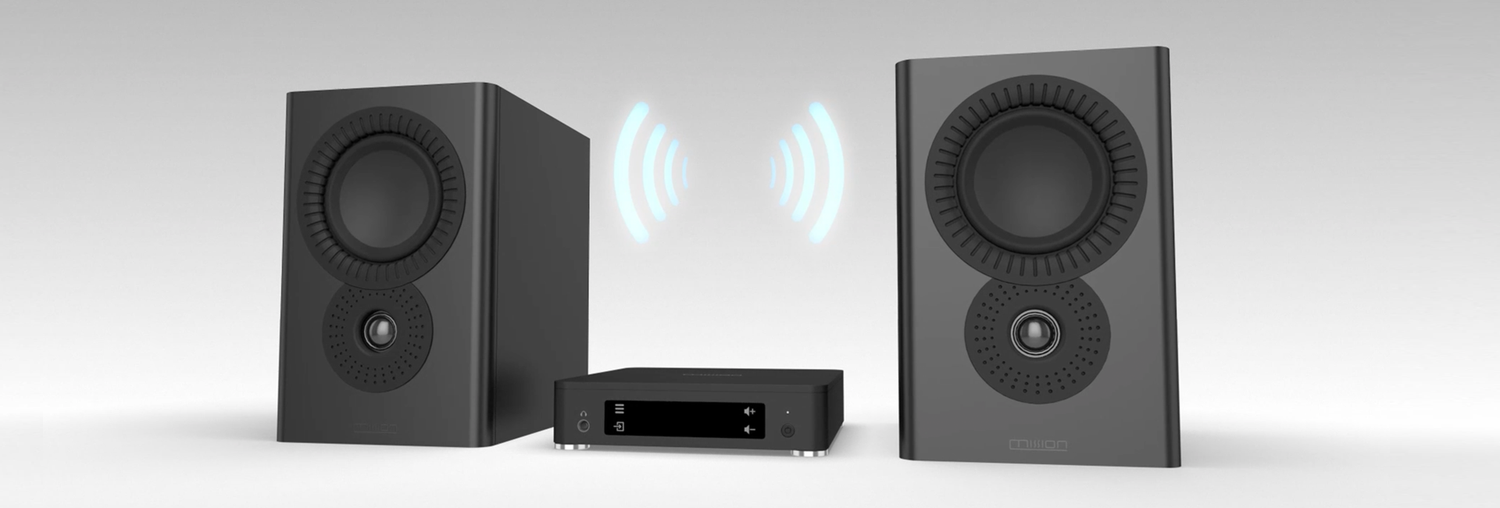

LX CONNECT offers wireless connectivity via an advanced wireless hub which hosts all of the connectivity options for your listening pleasure. The LX CONNECT HUB intelligently transmits left and right audio signals to the appropriate speaker via uncompressed, 5.8Ghz wireless audio signal transmission. There is no trailing cable between speakers or hub with no need for the speakers to be connected together via a cable, for ‘True Wireless’ audio.
Couldn't load pickup availability
MISSION LX CONNECT
The Mission LX Connect wireless speaker system is Missions first ‘True Wireless’ speaker system. Utilising innovative wireless technologies and combining it with the award-winning LX MKII Series speakers, the Mission LX Connect offers a new level of convenience and performance that changes the game for all wireless speaker systems.
LX Connect offers wireless connectivity via an advanced wireless hub which hosts all of the connectivity options for your listening pleasure. The LX Connect HUB intelligently transmits left and right audio signals to the appropriate speaker via uncompressed, 5.8Ghz wireless audio signal transmission. There is no trailing cable between speakers or hub with no need for the speakers to be connected together via a cable, for ‘True Wireless’ audio.
IMMERSIVE STEREO QUALITY

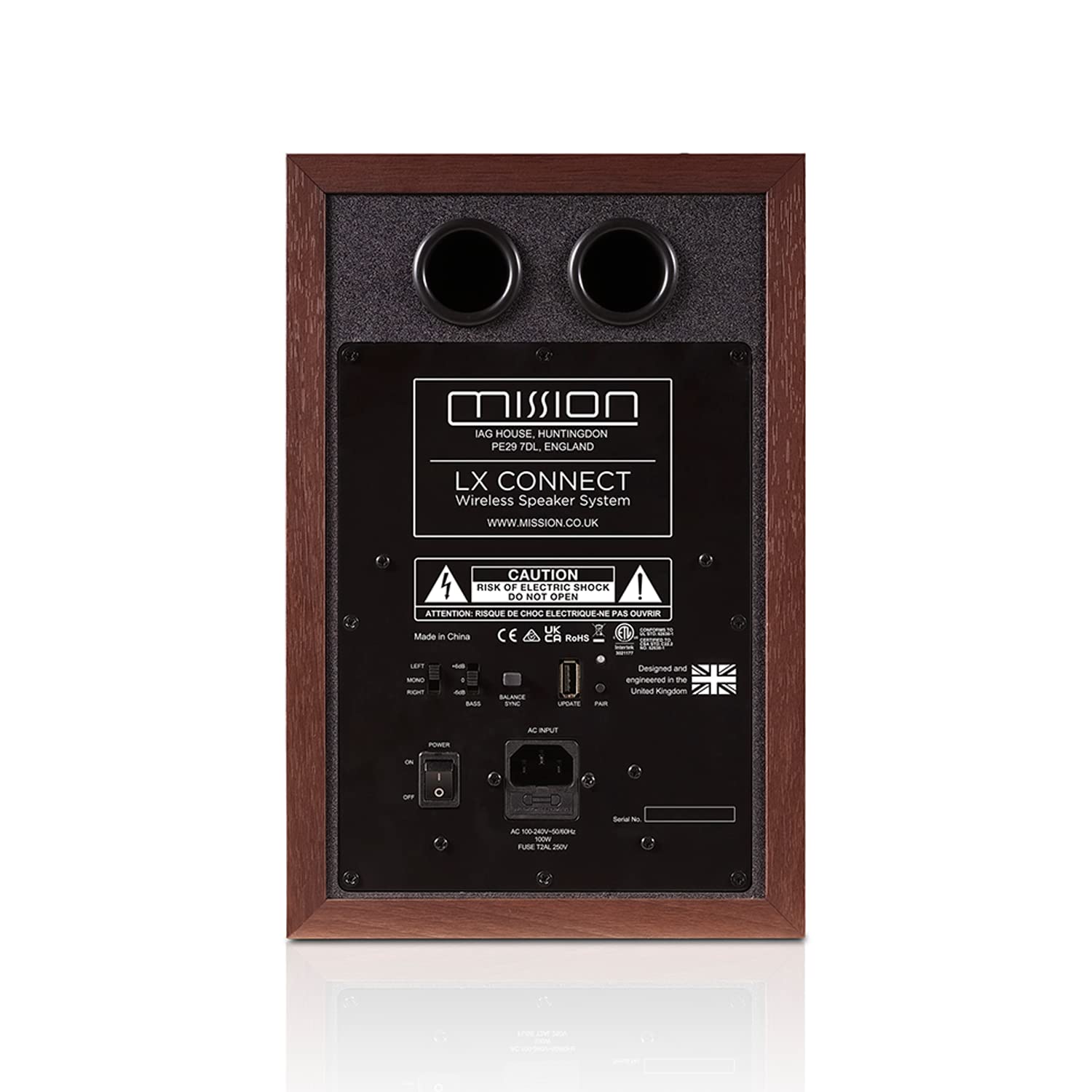

The speaker system is based on the Mission LX-2 MKII speakers, with specially engineered, high-power digital amplification modules offer 60w from each cabinet (120w per system). Following the LX MKII series design and performance, the LX Connect speaker maintain the Mission trademark ‘Inverted Driver Geometry’ design and precision-tuned crossover to yield improved transient attack and astonishing detail. Mission DiaDrive bass units offer superior control of the low-frequency diaphragm while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price-class.
ADVANCED WIRELESS SYSTEM

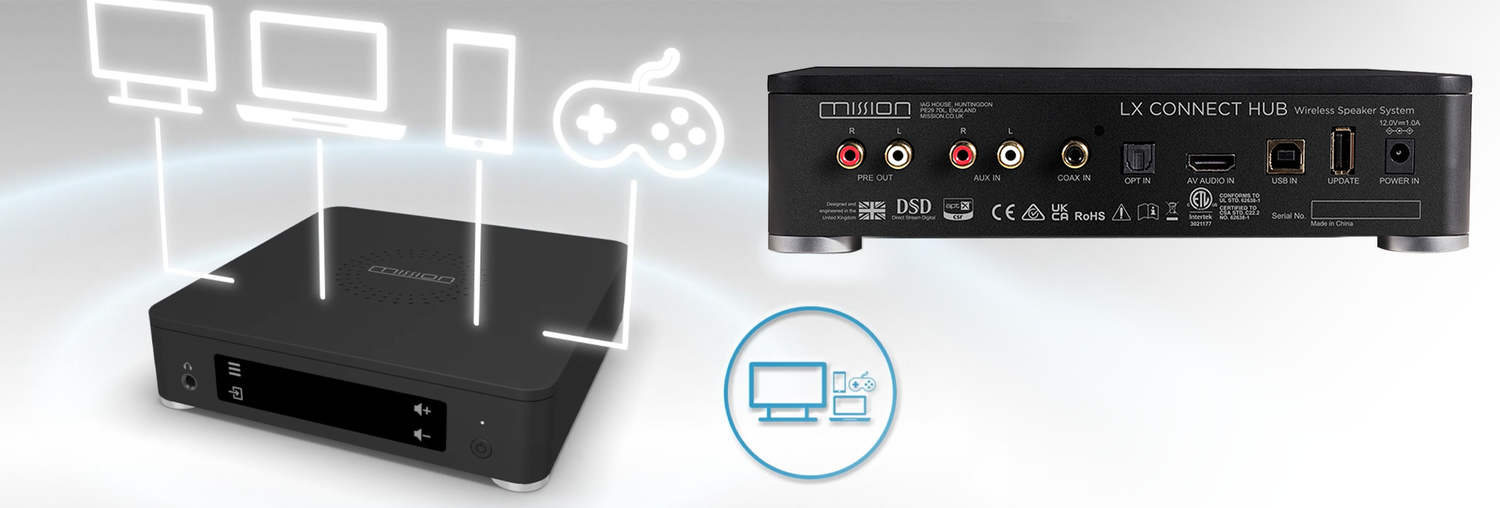

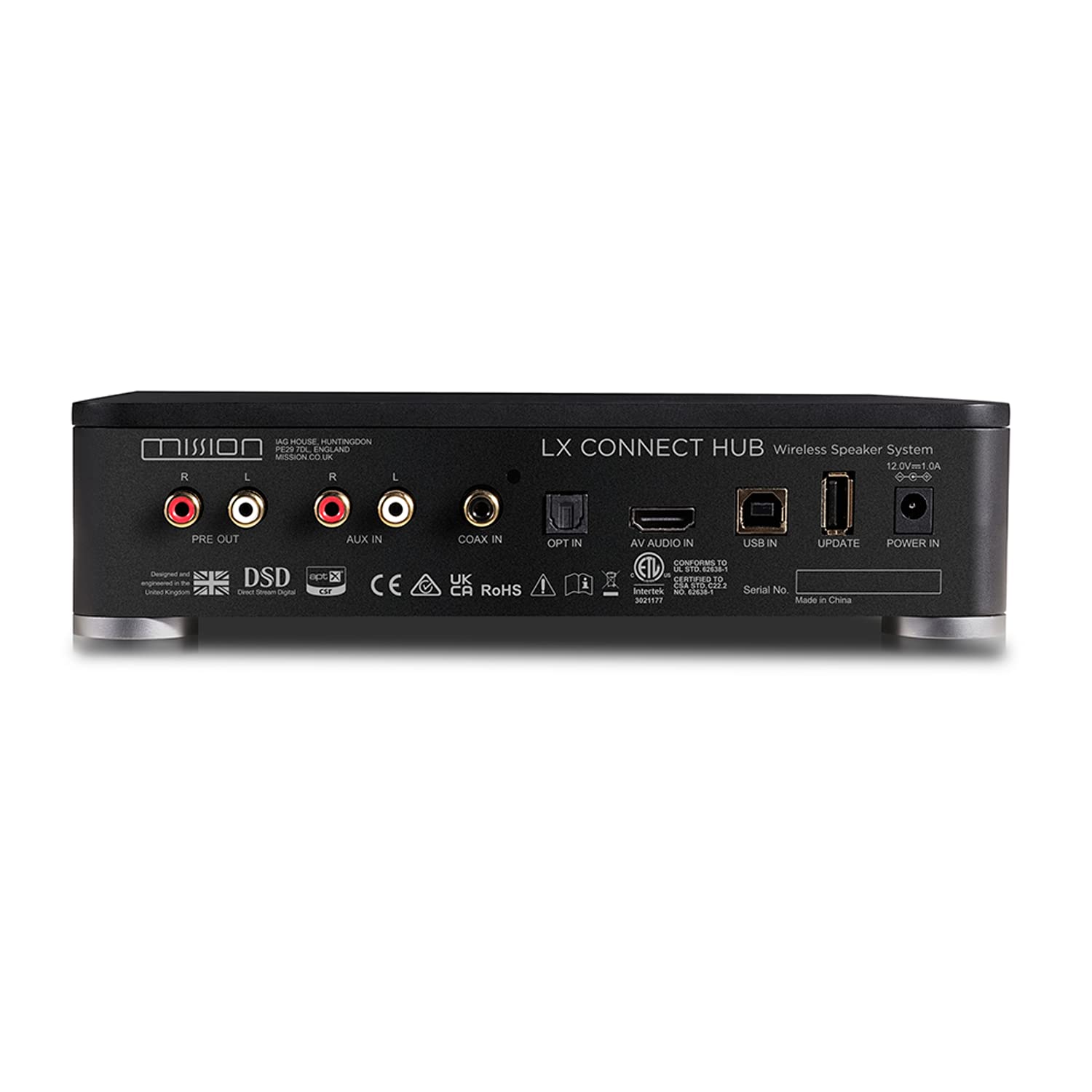

The LX Connect HUB, which acts as the central console for all of your music sources; including analogue, optical and coax digital inputs. The LX Connect HUB is a high-specification, standalone audio hub in it’s own right. There is a dedicated HDMI ARC connection to bring high fidelity, true wireless performance for TV, movies and games, and Bluetooth aptX connections for wireless streaming of hi-resolution audio from tablets and smartphones.
ADVANCED WIRELESS HUB
The LX Connect HUB also doubles as a high performance USB DAC, equipped with the ESS Sabre32 ES9018K2M Reference DAC, and hi-fi grade headphone amplifier that will outperform most dedicated headphone amp / DAC combinations in this price-point, alone!

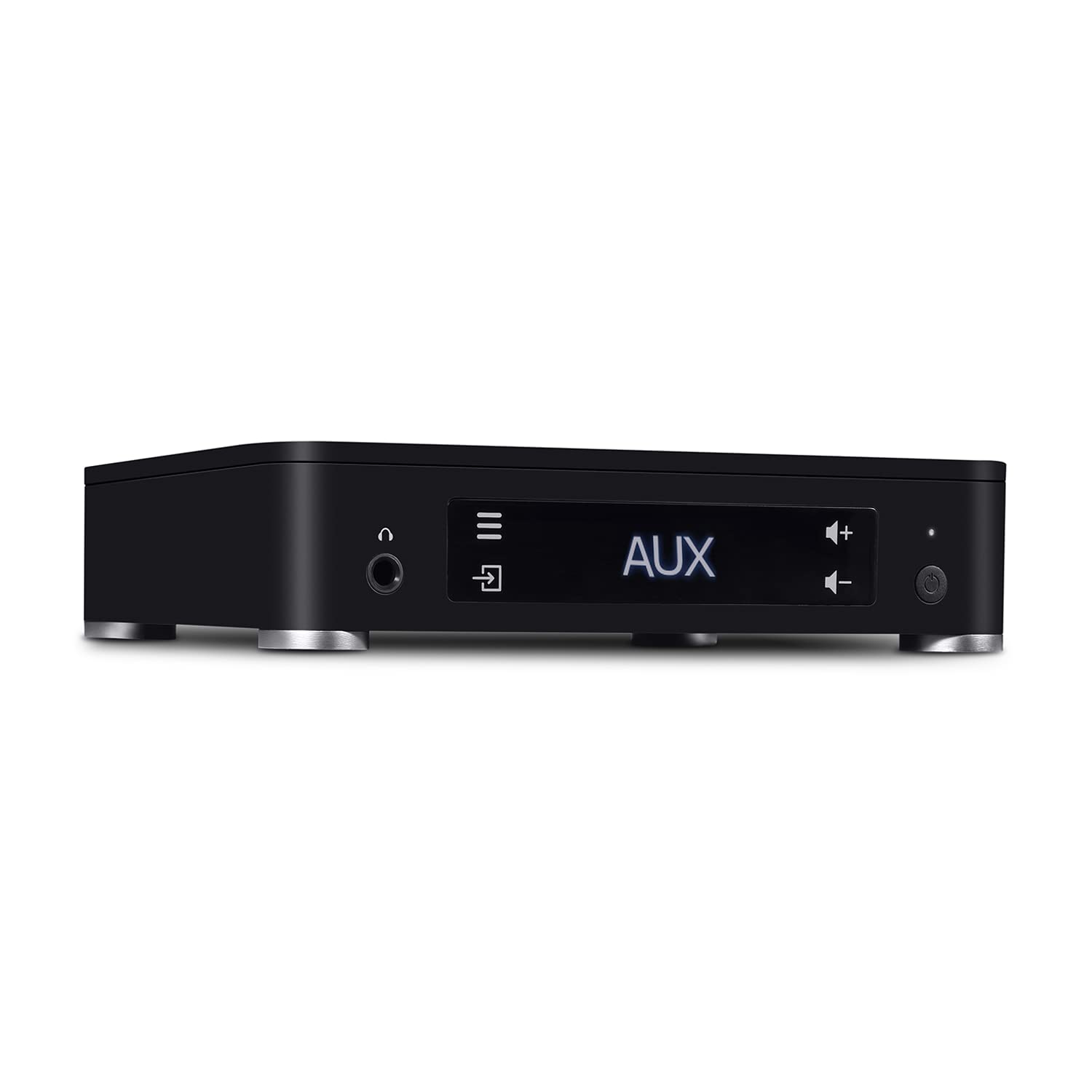

Unlike other wireless and active speakers where controls and inputs are often placed awkwardly on the back panel, the LX Connect HUB is easily controlled via the tactile interface and OLED display or, for even more convenience, you can use the included remote.
LUXURY LIFESTYLE FINISH

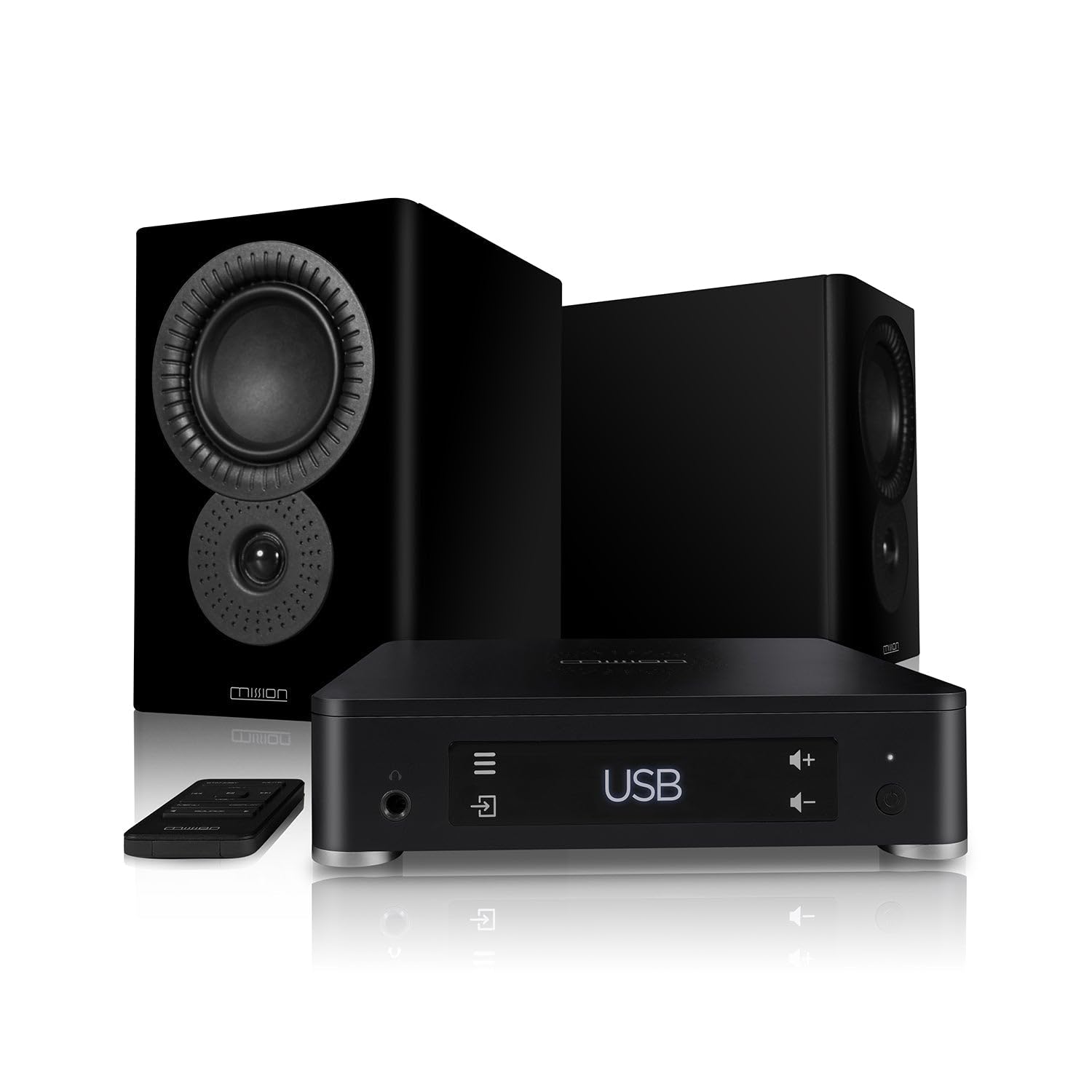

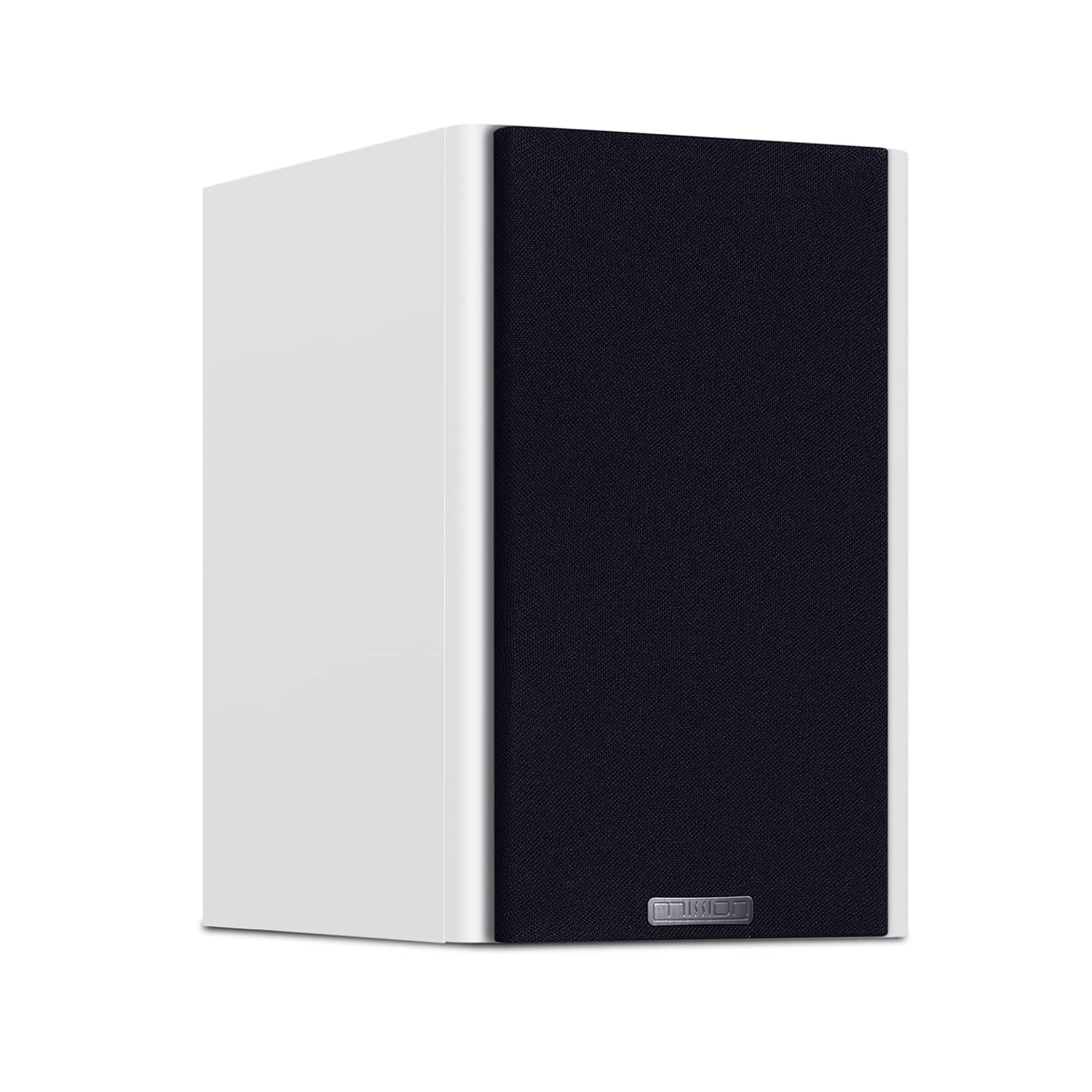

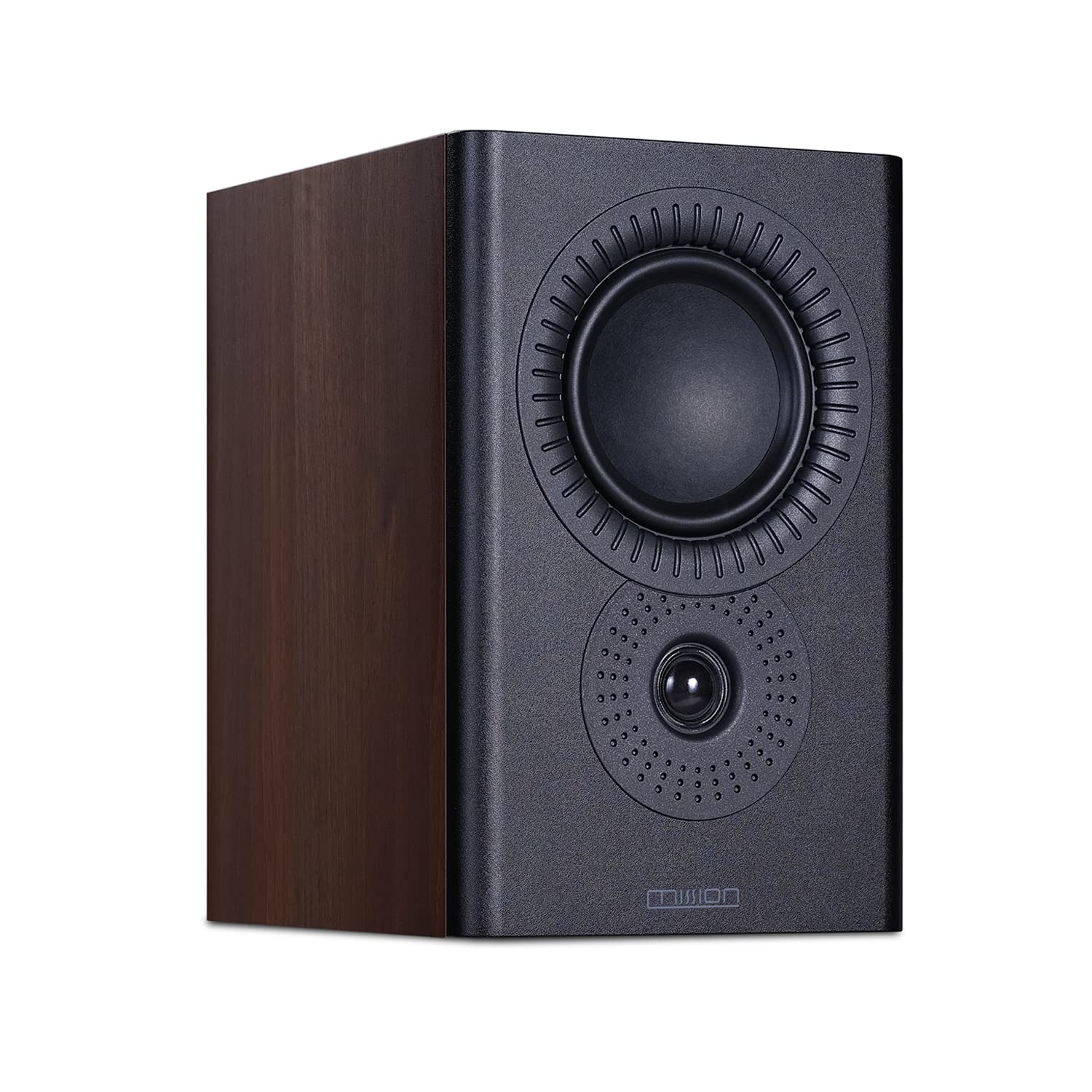

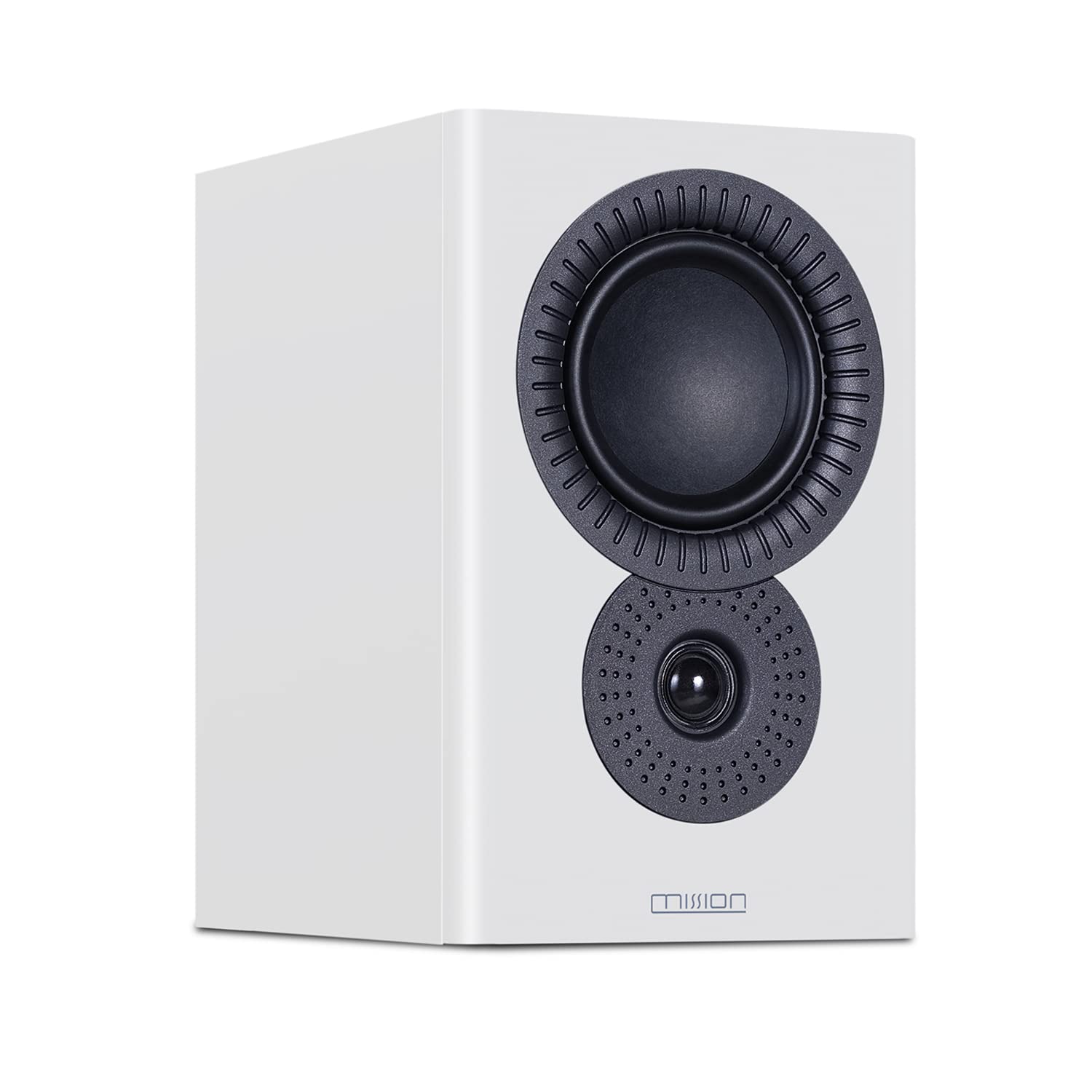

Sporting fantastic new Lux Black and Lux White, as well as classic Walnut Pearl finish options for the speakers; the Mission LX Connect is a truly wireless speaker that represents an expertly presented audio experience for hi-fi lovers, gamers and contemporary digital music enthusiasts, alike.
-

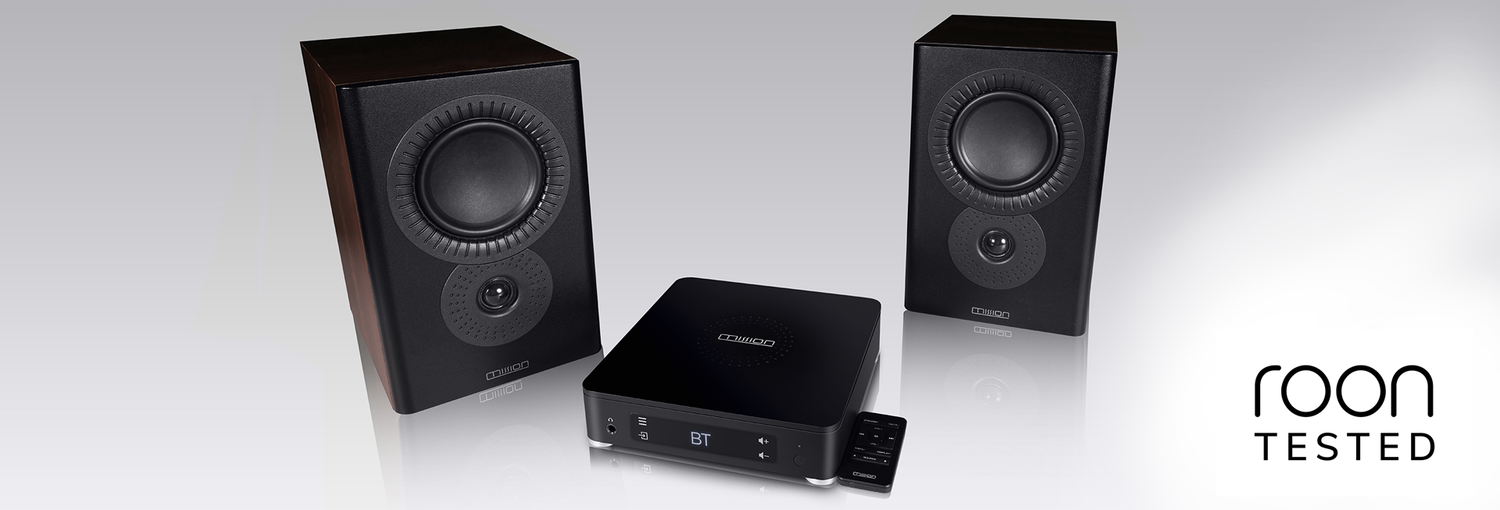

Roon transforms the experience of browsing music. Artist photos, credits, bios, reviews, lyrics, tour dates, and composers are located automatically, then interconnected by links to build a surfable, searchable digital magazine about your collection.
-
And Roon finds all the same links between your personal files and the millions of tracks available on TIDAL, so you can start with the music you know, then explore and discover new music from the world beyond your collection.
In addition to music browsing, Roon is a multi-room, multi-user networked audio platform built to the exacting standards of audiophiles. It offers features like bit-perfect playback, DSD and PCM upsampling, multichannel playback, and signal path display.
Collapsible content
LX CONNECT Specifications
 |
 |
||
|
General Description |
Wireless Speaker System | Active Speakers | |
|
Design Philosophy And Core Technology |
5.8GHz Wireless Uncompressed | Enclosure Type | Bass Reflex |
|
|
Technology | Transducer Complement | 2-way |
|
|
DAC ESS Sabre 9018 | Drive Unit | |
|
|
Support Music And Movie Mode | Bass Unit | 130mm Composite Fibre Cone |
|
|
Headphone Amplifier | Treble Unit | 25mm Microfibre Dome |
|
|
Support USB Upgrade | AV Shielded | No |
|
|
Pre Delay Setting | Rated Power Output | 60W |
|
|
Roon Tested | Peak Power Output | 100W |
|
|
Touch Control | Peak SPL | 99dB |
|
Analogue Input |
RCA (AUX) | Frequency Response (+/-3dB) | 58Hz – 20kHz |
|
Digital Input |
OPT, COAX, PC USB, Bluetooth, AV Audio | Bass Extension (-6dB) | 52Hz |
|
Analogue Output |
RCA Pre Out | Crossover Frequency | 3.2kHz |
|
Pre Amplifier (hub) |
Wireless Reception Distance | 20m | |
|
Input Sensitivity |
300mV (AUX IN, volume = MAX) | Cabinet Volume | 8.2L |
|
Input Impedance |
13K (AUX IN) | Dimensions | Speaker |
|
Variable Output Voltage |
0 – 3.2V | Height (on feet) | 305mm |
|
Output Impedance |
100 ohm | Width | 200mm |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) | Depth (with terminals) | (250+15)mm |
| Signal-to-noise Ratio | > 100dB (AUX IN, A-weighted) | Hub | |
| (S/N) | > 110dB (digital Inputs, A-weighted) | Height (on feet) | 55mm |
| Total Harmonic Distortion | < 0.001% (digital sources ) | Width | 225mm |
| < 0.005% (analogue sources) | Depth (with terminals) | 231mm | |
| Sampling Rate | 24bit - 192kHz (OPT, COAX) | System | |
| 32bit - 384kHz (USB, PCM) | Carton Size | 545 x 440 x 400mm | |
| 2.8M for DSD64, 5.6M for DSD128, | Net Weight | 6.55kg x 2 (speakers) | |
| 11.2M for DSD256 (USB, DSD) | 1.75kg (hub) | ||
| Digital Filters | Fast Roll-off, Slow Roll-off, Minimum Phase | Gross Weight | 17.8kg |
| Finish | Walnut Pearl / Lux White / Lux Black (speakers); Black (hub) | ||
| Power Requirements | 100-240Vac (50/60Hz) |
