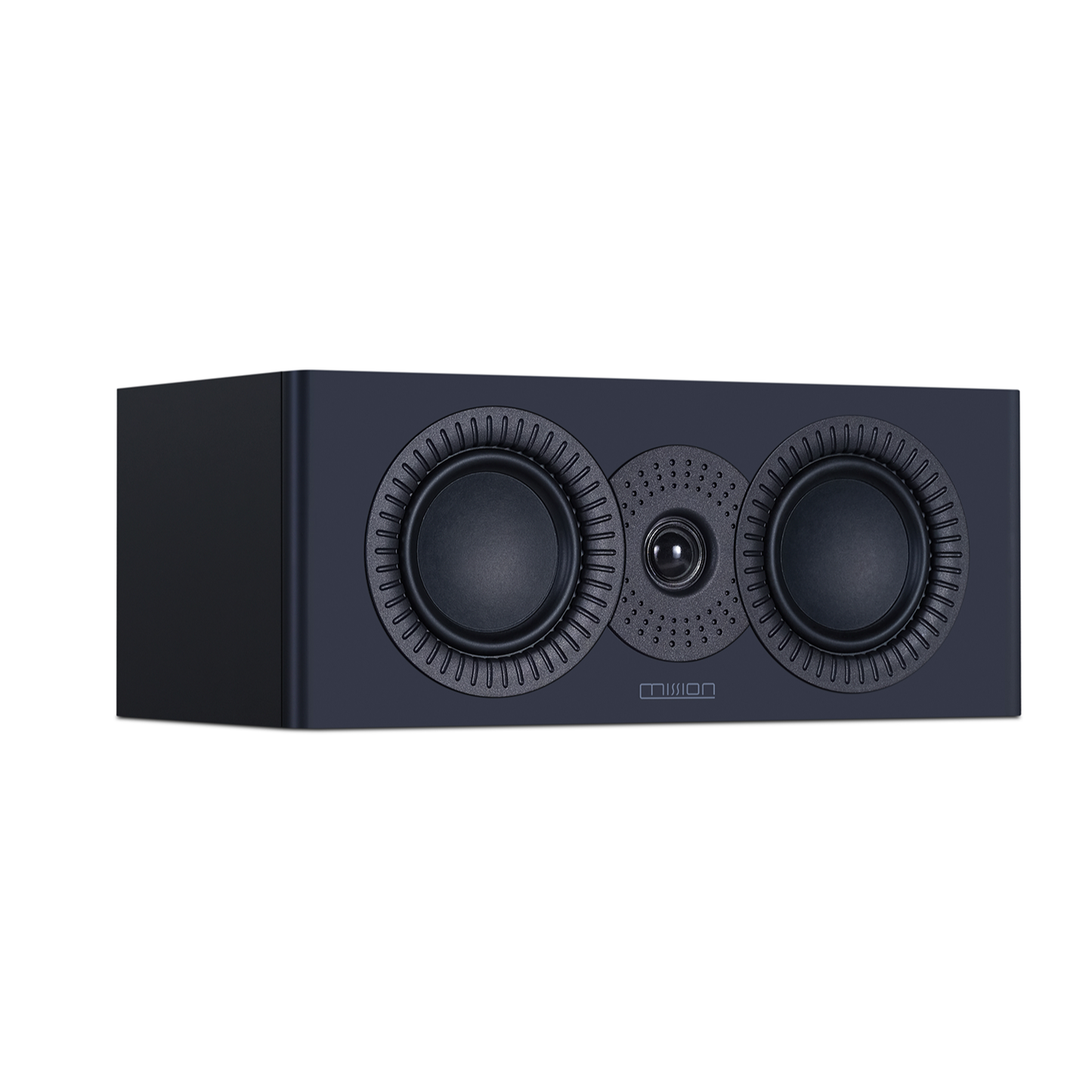

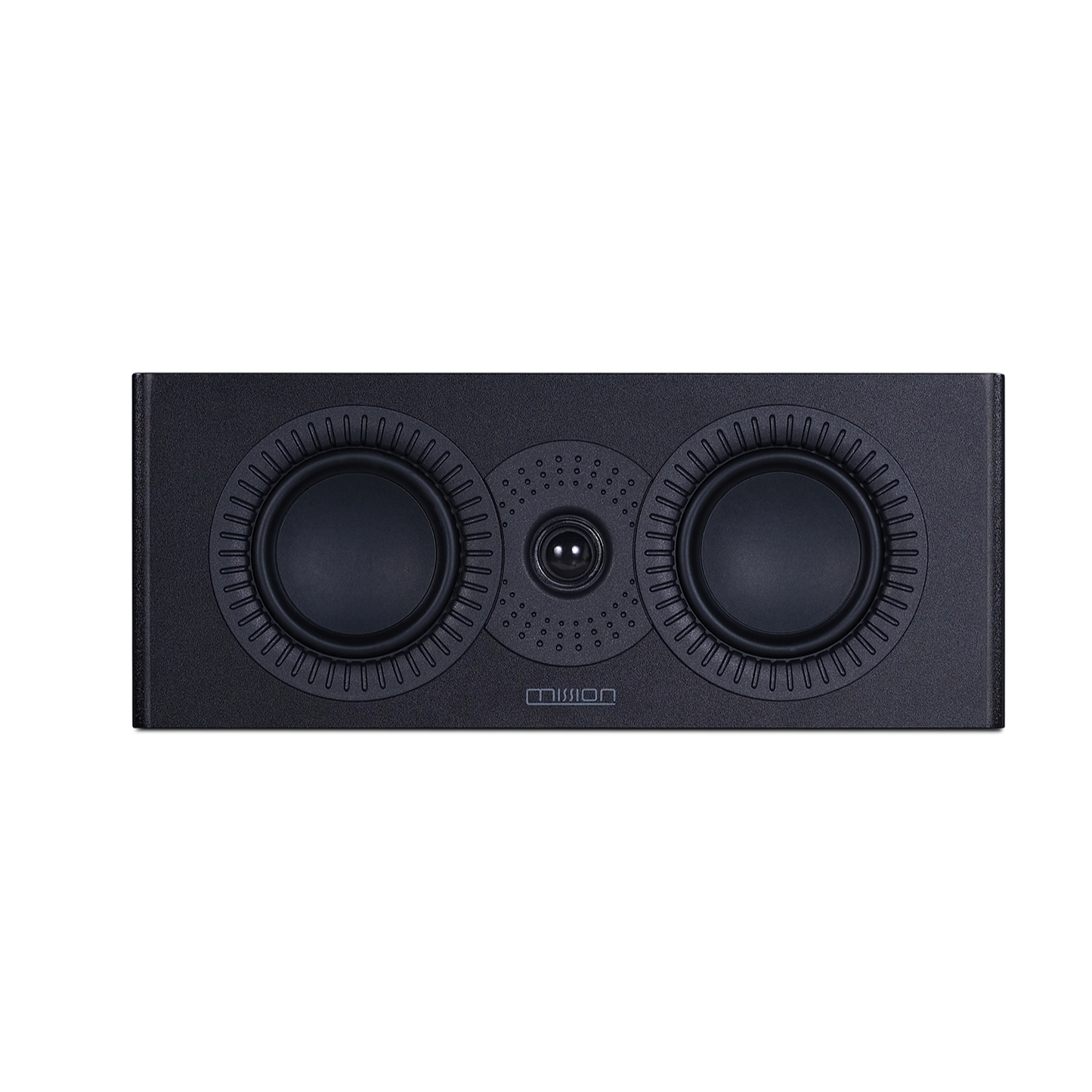

LX-C1 MKII 4" Center Channel speaker
LX-C1 MKII 4" Center Channel speaker
LX-C1 MKII is a 2-way Center Channel speaker with dual 4″ bass driver and a 1″ softdome treble unit.
The LX MKII Series is the latest in a long line of distinguished Mission loudspeakers, joining the multi-award winning speakers from the mid-level QX Series and the flagship ZX Series. LX MKII maintains the Mission trademark ‘Inverted Driver Geometry’ design, which means the path length between the drivers is optimized. Unique at this price-point, this arrangement allows the precision-tuned crossover to yield improved transient attack and astonishing detail.
Perfected over hundreds of hours of critical listening by Mission’s lead acoustic designer, Peter Comeau, Mission LX MKII utilizes trickle-down innovations from the revered ZX series. Improvements in the famous Mission DiaDrive bass unit offer superior control of the low-frequency diaphragm while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price-class.
From over 40 years of British Hi-Fi heritage and experience, LX MKII is a representation of Mission’s non-stop pursuit of improvement and excellence
Advanced New Driver Surrounds and Crossover
One of the critical areas highlighted by the development of Mission ZX and QX models was the use of serrations in the driver surrounds to help scatter interfering reflections from localised surfaces to the dome and cone
LX MKII now incorporates these serrations into the driver surrounds, adding further finesse to the drive unit outputs and providing a smoother frequency response
With minor perturbations in the driver response ironed out, the crossover for each model has been optimised to take advantage of the improved performance
The result is that the LX MKII builds on the winning formula of the LX, both enhancing the clarity of
midrange and treble detail and improving the micro-dynamics of the musical performance for an even more thrilling listener experience
Inverted Geometry Drive Design
Mission’s classic IDG (Inverted Driver Geometry) driver format positions the high frequency below the bass / midrange driver meaning the length of path is equalised so the sound waves coincide at the listener’s head height. A proprietary principle that improves ‘time alignment’ and thus transient performance in Mission speakers
A New Start, With a New Finish
Standout new finish options follow the Mission mantra of fusing Hi-Fi heritage with contemporary design. LX MKII is beautifully finished in a choice of walnut pearl, and the latest Lux Black matte finishes.
LX MKII is the epitome of affordable high-end audio, harnessing materials, techniques and technologies that you would only expect to find in other speakers costing many times the price
Whatever your choice of music, LX MKII will reproduce it with outstanding accuracy, detailing and realism, embodying Mission’s traditional adage since the 1970s
LX-C1 MKII Specifications
|General description||2-way bookshelf speaker||Bass extension(-6dB)||70Hz|
|Enclosure type||closed-box system||Crossover frequency||3.5kHz|
|Transducer complement||2-way||Cabinet Volume (in litres)||7.6L|
|Bass driver||4"(100mm) composite fibre||Height (on plinth)||160mm|
|Treble driver||25mm microfibre dome||Depth (with terminals)||(200+8)mm|
|AV shield||No||Carton size||495 x 300 x 255mm|
|Sensitivity (2.83V @ 1m)||88dB||Net weight||6.1kg/pcs|
|Recommended amplifier power||20-100W||Gross weight||7.5kg/ctn|
|Peak SPL||103dB||Finish||Walnut Pearl / Lux White / Lux Black|
|Nominal impedance||8Ω Compatible|
|Frequency response (+/-3dB)||75Hz ~ 20kHz|
